PS-LB/LS/LB2-NA
Outdoor Analog to LoRaWAN converter
-
Protocol: LoRaWAN 1.0.3 Class A
- Bands option: US915/EU868/AS923/AU915/IN865/KR920
-
Input Interfaces: 1*4~20mA, 1*0~30V, 1*Interrupt, 2*Digital IN
- Output Interfaces: 5V/12v controllable
- Configuration: AT Commands, V5.1 BLE configuration, Downlink commands
- Battery options：8500mAh Li/SOCl2 & Solar panel + 3000mAh Li-ion & 19000mAh Li/SOCl2
-
Operating Temperature: -25 ~ 85°C
-
IP Protection: IP67 waterproof
- Certifications: CE / FCC / REACH/RoSH
1. Applications
2. Product Overview
The Dragino PS-LB/LS/LB2-NA is an industrial-grade analog to LoRaWAN converter that converts analog sensor signals directly into LoRaWAN payloads. It features one 4–20mA current input and one 0–30V voltage input — covering the vast majority of industrial analog transducers — with 0.001mA and 0.001V resolution respectively. Onboard 5V and 12V controllable outputs power the connected sensors only during sampling, preserving battery life. The device runs LoRaWAN 1.0.3 Class A on SX1262 with +22dBm TX power and -139dBm RX sensitivity. With 5µA sleep current, an 8500mAh battery (or solar + 3000mAh Li-ion), and BLE/OTA remote management, this analog to LoRaWAN converter delivers years of unattended analog monitoring in remote industrial environments.

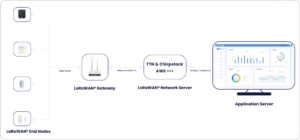

3. How to set up your network to make your data visualization?
